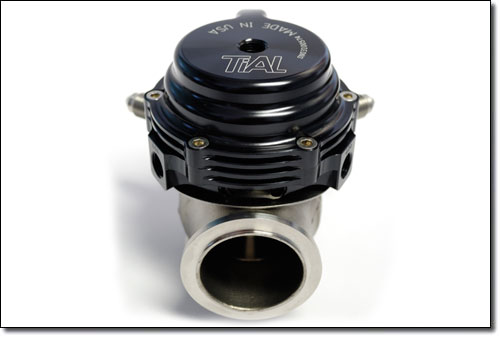

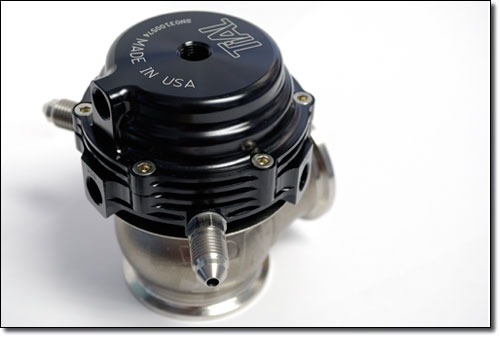

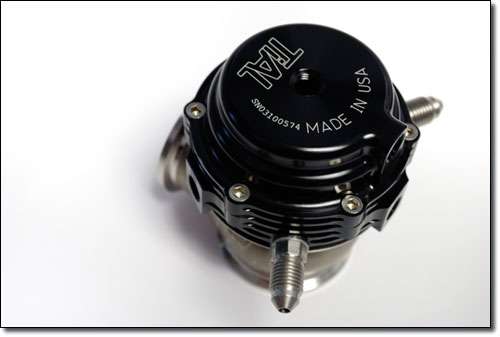

TiAL MV-S - 38mm Wastegate

<< Previous in Wastegates Next in Wastegates >>

Color:
Price: $259.99
Manufacturer: TiAL
Part No.: TiAL-MVS

Included with every Tial MV-S:

  • MV-S Assembly
  • MV-S Valve Seat
  • Inlet V-band clamp

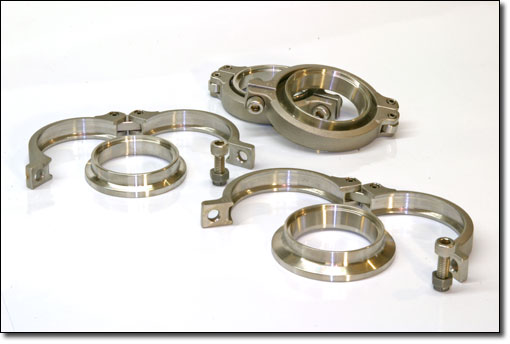

  • Inlet Flange
  • Outlet V-Band Clamp
  • Outlet Flange
  • 2 TiAL Air Fittings
  • Plugs for unused air ports
  • All Available Springs
Features:

- High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.

- High temperature silicone Nomex reinforced actuator diaphragm.

- 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist "relaxing" at    temperature to 900F (483C).

- Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.

- All Stainless Steel hardware.

- Mating weld flanges are 304L

- Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).

- 3 lower ports and two top ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.

-Ultra compact design fits in very tight spaces, the unit stands only 3.7" tall, more compact than any other external wastegate on the market today.

- V-Band inlet and outlet make install easy, flanges and clamps are in the box!

NOTE: The MV-S now comes complete with all available springs.
