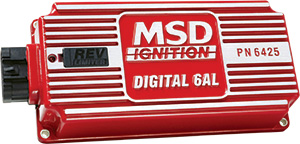

MSD Digital 6AL Ignition Control

<< Previous in MSD 6 Series Ignitions Next in MSD 6 Series Ignitions >>

Price: $349.95
Manufacturer: MSD Ignition
Part No.: 6425

Features:

  • With Soft Touch Rev Control
  • Higher output with 530 primary volts and 135mJ of spark energy
  • Efficient components use less current to produce more power
  • Set an rpm limit on the 6AL with two rotary dials
  • Same bolt pattern as the original 6AL with a lower profile housing
  • Built-in LED for system checks
  • All wires exit the same side through a locked, sealed connector
  • Compatible for 4, 6 or 8-cylinder engines
Operating Specifications:
  • Spark Energy: 135-145 mJ per spark
  • Primary Voltage: 520-540 Volts
  • Secondary Voltage: 45,000 Volts
  • Spark Series Duration: 20 degree Crankshaft Rotation
  • RPM Range: 15,000 RPM with 14.4 Volts
  • Voltage Required: 12-15 Volts, 7 Volt Start
  • Current Draw: .7 Amp per 1,000 RPM
  • Weight and Size 1.7 lbs., 8"L x 4"W x 1.825"H

Wd6425

The Digital 6AL and 6A easily connect to 4, 6 and 8 cylinder engines with a 12 volt, negative ground electrical system. The MSD will accept trigger signals from a points or amplifier distributor as well a magnetic pickup.
