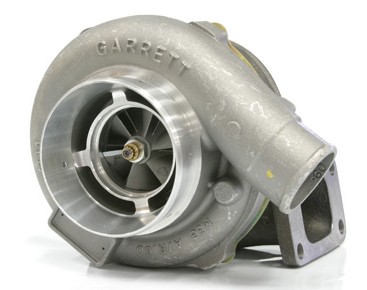

Garrett GT4094R
| |
|
|
|
|
| *
|
Oil & water-cooled bearing system
|
| *
|
Free float, non-wastegated turbine housing
|
| *
|
Ideal for applications that cannot fit the GT4294R but need more flow than the GT4088R
|
| *
|
Outline interchangeable with GT4088R
|
| *
|
4 turbine housing options
|

|
|
|
|
|
|
|
|
|
|
|
|
|
Horsepower 450 - 800
Displacement 2.0 - 5.7
|
|
|
|
|
|
|
|
|
|
|
|
Ball Bearing
|
| GT4094R
|
|
COMPRESSOR
|
|
TURBINE
|
|
Turbo
|
|
CHRA
|
| 751470-19
|
|
751450-16
|
|
|
|
|
Wh Dia
|
Trim
|
A/R
|
|
|
Ind
|
Exd
|
|
|
67.8mm
|
94.0mm
|
52
|
0.72
|
|
|
|
|
|
Wh Dia
|
|
Trim
|
|
A/R
|
|
Type
|
|
|
|
77.0mm
|
|
78
|
|
0.85
|
|
Free Float
|
|
|
|
| TURBINE HOUSING OPTION
|
| Part Number
|
| 448375-19
|
| 448375-20
|
| 448375-21
|
|
|
|
|
|
Wh Dia
|
|
Trim
|
|
A/R
|
|
Type
|
|
|
|
-
|
|
-
|
|
0.95
|
|
Free Float
|
|
|
|
-
|
|
-
|
|
1.06
|
|
Free Float
|
|
|
|
-
|
|
-
|
|
1.19
|
|
Free Float
|
|
|
|
|
|
|
|
|
|
|
