ETS Mitsubishi Evolution 8 and 9 Intercooler Kit

<< Previous in Intercoolers Next in Intercoolers >>

Manufacturer: Extreme Turbo Systems
Part No.: Evo89ik

Features:

  • Pressure Checked at 35psi
  • Bolt on design retains crash beam (3" and 3.5")
  • Fills entire grill with core
  • Eliminates excessive piping
  • Full Mandrel Bent 2.5" Piping
  • Stainless Steel T-Bolt Clamps
  • 3-Ply Reinforced Silicone Couplers
  • Short Route: Two feet shorter than stock
  • Lower piping flows over 20% more than stock
  • Upper Piping flows over 12% more than stock
  • 24x11.5x3.0" Bar & Plate Core, 1058cfm-700hp at 79% efficiency Direct Replacement - Requires Minor Trimming on EVO 8
  • 24x11.5x3.5" Bar & Plate Core, 1127cfm-750hp at 80% efficiency Direct Replacement - Requires Minor Trimming on EVO 8
  • 24x11.5x4.0" Bar & Plate Core, 1219cfm-820hp at 81% efficiency Direct Replacement, with spacer behind the crash beam
  • Recirculation kit is only needed for Mini Battery UICP (Stock battery UICP uses stock recirculation pipe)
  • Available in Silver, Black, Blue, Gold, and Red

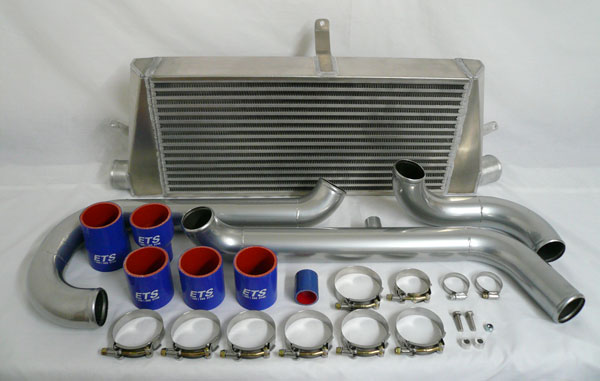

The ETS Lancer EVO Intercooler is the best on the market, bar none. It features bolt on installation, eliminates the two up-pipes to the intercooler and fills the whole grill with core for a killer look and maximum efficiency. This unit also retains the factory crash bar and splash pans (3" and 3.5"). The kit includes the intercooler, mounting hardware, silicone couplers, and SS T-Bolt Clamps. Check out the features below:

The ETS EVO Piping kit is designed to eliminate many of the unnecessary bends in the stock piping. Our piping starts off by immediately expanding into 2.5” diameter right off of the turbo elbow. This replaces the tiny 1 3/4” factory pipe and instantly frees up 15hp and greatly improves spool up. From here it follows the core support and wraps around to mate up to the intercooler. Once the air passes through the intercooler, the piping takes a short direct path around the core support, over the transmission and straight up to the throttle body. This unique routing is over two feet shorter than the stock routing which results in greatly improved spool up and transient response.  With an 11% increase in cross sectional area, flow is increased as well.

Also available for those with a Front Power Brace from Cusco. We make a bolt on intercooler that fits within the brace.

Note: Does not fit stock airbox.
