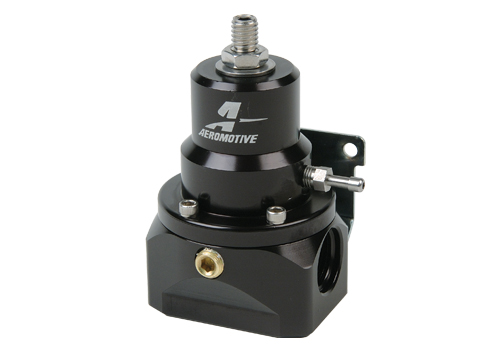

Aeromotive A2000 Bypass 2 Port Regulator

Dynamic flow and rock steady pressure make this regulator perfect for naturally aspirated or carbureted blow-through applications. The A2000 Bypass Regulator provides unmatched boost reference and high flow capacity. Compatible with any high volume electric or mechanical fuel pump.

• Adjustable from 2-20 PSI.
• Bypass design provides the ultimate, dynamic fuel delivery system. (Requires AN-10 return line)
• Fuel pressure rises on a 1:1 ratio when referencing boost.
• ORB-10 inlet and return ports.
• P/N 13212 provides (1) ORB-10 outlet port.
• P/N 13212 available with fuel log P/N 14201 or 14202, fittings and gauge as P/N 17248 or 17250.

Note: High pressure, boost reference applications require high volume, high pressure fuel pumps. EFI capable, electric or mechanical pumps like the Aeromotive Pro-Series (P/N 11102), Eliminator (P/N 11104), or Belt Drive Fuel Pump (P/N 11105) are strongly recommended.
