Aeromotive Marine A1000 Bypass Regulator
|
* Whole number only
|
Manufacturer: Aeromotive
Part No.: 13207

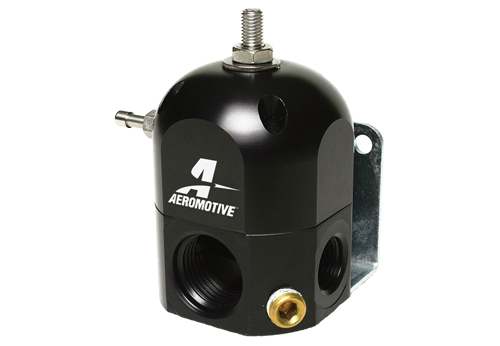

13207 - Marine A1000 Bypass Regulator
Full volume at perfect pressure, the A1000 Regulator was designed for use with their Marine A1000 Fuel Pump or any similar style pump. This regulator is
perfect for naturally aspirated or “blow-through” turbo-charged or
supercharged engines.
• Base fuel pressure adjustable from 3-15 PSI
• (1) ORB-10 inlet port and (1) ORB-8 return port.
• (2) ORB-6 outlet ports and 1/8” NPT gauge port.
• Fuel pressure rises on a 1:1 ratio when referencing boost.
Download Installation Instructions
|
|
|
|
