Aeromotive Platinum Series Compact EFI Regulator
|
|
Manufacturer: Aeromotive
Part No.: 13155

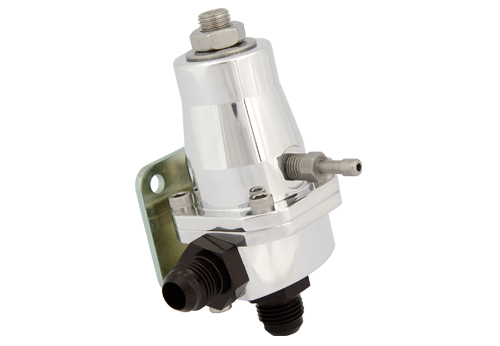

13155 - Platinum Series Compact EFI Regulator
Big
performance in a small package. The Compact EFI Regulator is designed
for applications producing up to 1,000 HP where space is at a premium.
Ideal for EFI fuel delivery systems that are limited to one regulator
inlet port.
Each Platinum Series product features a mirror like, show-quality
nickel finish that is virtually maintenance free and is identical in
performance to its anodized brother. For more information, see the
corresponding anodized product.
• Features a nickel finish.
• Adjustable from 30-70 PSI.
• Equipped with removable AN-6 male fittings for inlet and outlet
ports, eliminates the need to buy additional fittings and O-rings.
• Dedicated, 1/8” NPT gauge port located opposite the side inlet.
• Fuel pressure rises on a 1:1 ratio when referencing boost.
Download Installation Instructions
|
|
|
|
