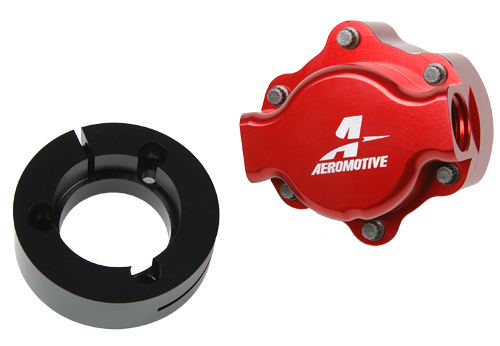

11107 - Billet Hex Drive Fuel Pump
Get
the same unparalleled performance you get from our Billet Belt Drive
Fuel Pump (P/N 11105), with the convenience of direct drive. The Hex
Drive Fuel Pump can be mounted and driven directly from the back of a
properly prepared external oil pump or driven directly by the cam
through a timing cover adapter. Designed to solve fuel delivery
problems in high horsepower, forced-induction EFI applications, as well
as the now popular, carbureted applications on gas or methanol.
•Utilizes standard, 3/8” hex drive shaft and adjustable, billet mounting
collar with standard 3-bolt mounting pattern and hardware.
•Proven performance, powering some of the world’s fastest EFI vehicles.
• Supports up to 3600 HP gas, 1800 HP methanol.
• Compact size facilitates easy mounting.
• Billet aluminum CNC-machined body, not “cast”.
• ORB-10 inlet and outlet ports.
• For EFI applications use regulator P/N 13113.
• Carbureted gasoline applications require regulator P/N 13202 or P/N 13212.
• Alcohol applications require Double Adjustable Regulator P/N 13209 or 13214.
Note: Electric Priming Kit available – P/N 17301 (see Accessories)
