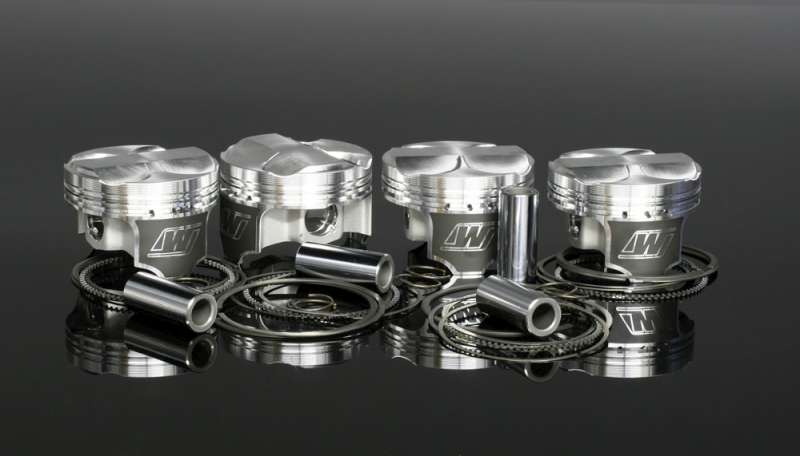

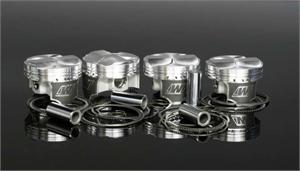

Wiseco K625M85AP - 1400 HD Pistons and Rings for Mitsubishi 4G63 6 Bolt Standard 88mm Stroke, -14cc Dish, 85mm Bore

<< Previous in 4G63 6 Bolt Pistons Next in 4G63 6 Bolt Pistons >>

Price: $933.10
Manufacturer: Wiseco
Part No.: K625M85AP
  Part Number  K625M85
  Bore   85mm / 3.346"
  Stroke   88mm / 3.465"
  Rod Length  150mm / 5.906"
  Compression Height
 35mm / 1.378"
  Dish Volume   -14cc Dish
  Compression Ratio   8.5:1
  Wrist Pin Diameter   21mm / .827"
  Included Wrist Pins   .225" Wall H-13 Tool Steel
  Ring Stack   1.0mm x 1.2mm x 2.8mm

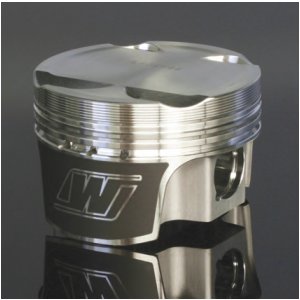

This Wiseco Piston Kit is designed to fit 1G 4G63 6 Bolt Engines with a 88mm Stroke Crankshaft and 150mm Long Connecting Rods.  Included in this kit are Heavy Duty .225" Wall Tool Steel Wrist Pins and a Matching Piston Ring Set. The Piston Rings feature a Gas Nitrided Top Ring that works very well with Turbocharged Engines and a Napier 2nd Ring for Excellent Oil Control. These Pistons feature Wiseco's ArmorGlide® Skirt Coating for reduced friction and Wiseco's Armour Plating Finishing Process. The Armour Plating drastically strengthens the Piston Material, making it harder the hotter it gets. This helps resist any possible detonation and also helps the Piston Rings from Micro Welding under extreme temperatures.
