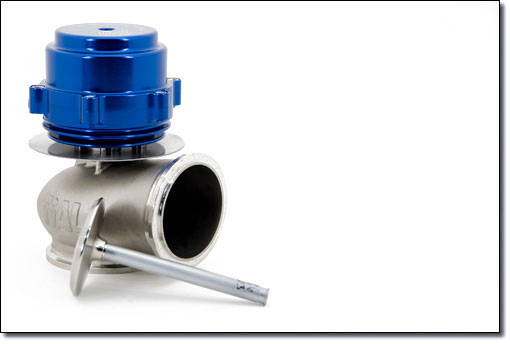

TiAL V-60 Wastegate

<< Previous in Wastegates Next in Wastegates >>

MSRP: $599.99
Price: $559.99
Manufacturer: TiAL
Part No.: WG60mm

Included with every Tial V60:

TiAL V60 Assembly
TiAL V60 Valve Seat
Inlet V-band clamp
Inlet Flange
Outlet V-Band Clamp
Outlet Flange
2 TiAL Air Fittings

- High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.

- High temperature silicone Nomex reinforced actuator diaphragm.

- 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist "relaxing" at temperature to 900F (483C).

- Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.

- All Stainless Steel hardware.

- Mating weld flanges are 304L

- Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).

- Flows 330 CFM @ 1psi differential pressure
