Manley 616000C-4 Hyundai Theta I4 -2.5cc Dish Platinum Series Pistons, 86mm Bore
|
* Whole number only
|
Manufacturer: Manley
Part No.: 616000C-4
| Part Number
|
616000C-4
|
| Bore Size (mm)
|
86mm
|
| Over Size
|
Standard
|
| Rod Length
|
5.753"
|
| Stroke
|
3.386"
|
| Comp. Distance
|
1.181"
|
| Wrist Pin
|
.866" / 22mm x 2.250" .150" Wall
|
| Dome Volume (cc)
|
-2.5cc
|
| Compression Ratio
|
9.3:1
|
| Piston Type
|
Dish
|
| Piston Weight (g)
|
325g
|
| Included Ring Set
|
46860-4
|

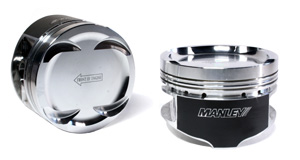

These Manley Platinum Series Pistons are Forged from 2618 Alloy and are designed to withstand extreme amounts of boost. Moly Coated Skirts, Premium 4130 Chrome Moly Wrist Pistons with Round Wire Locks and Total Seal AP Steel Rings are included at no additional cost.
|
|
|
|
