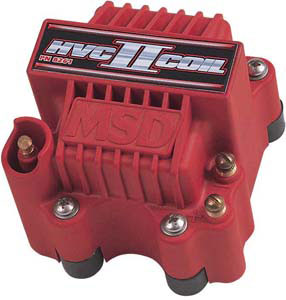

HVC-2 Coil, 7 Series Ignitions

<< Previous in MSD Ignition Coils Next in MSD Ignition Coils >>

Price: $325.95
Manufacturer: MSD Ignition
Part No.: 8261
The Pro Power HVC II Coil is completely built in-house so our engineers have exclusive control over their performance and qual­ity. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting edge winding material that has an improved insulation and is also capable of enduring extreme volt­ages. Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration. The housing, also molded from Rynite material, features far spaced brass primary terminals and a well protected secondary tower for increased spark isolation. The housing is completely potted with an epoxy compound for vibration resistance and installs with sturdy vibration mounts. For use with MSD 7 and 8 Series Ignitions.

Features:
  • Designed for racing applications with an MSD 7 Series Ignition Control
  • New U-core winding design produces more voltage and current
  • 70:1 turns ratio and lower primary resistance produce high voltage output
  • Windings are encased in fracture resistant compound for vibration resistance
  • Dupont Rynite housing with isolated tower and brass primary terminals
  • Supplied with rubber shock mounts
  • No CARB Exemption Order Number
