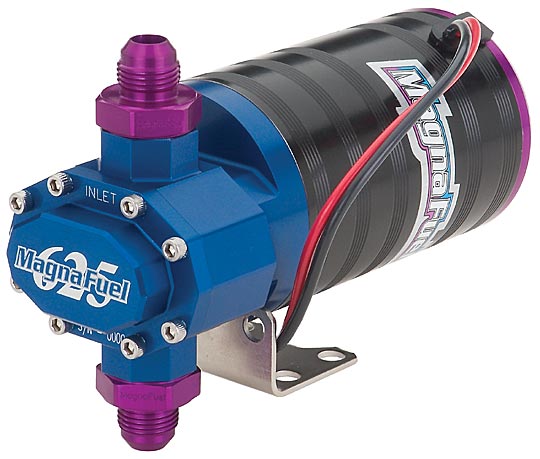

Magnafuel MP-4103 ProStar EFI SQ 750 Electric Fuel Pump
|
* Whole number only
|
Manufacturer: MagnaFuel
Part No.: MP-4701
| Once-piece design is more compact and light weight.
|
- Compact design fits in smaller spaces
- First electric motor gear pump to supply 2,500+ HP
- Provides highest volume at highest pressure... Period
- Great performance for the high volume and pressure demands of supercharged and turbo-charged applications
- Never requires voltage reduction devices due to high quality motor construction
- Powered by the same motor as the race proven MagnaFuel ProStar 500
- Compatible with alcohol and gasoline racing fuels
- Hand assembled to the highest quality standards
- Pump bodies computer machined out of high quality 6061-T6 Billet Aluminum
- Flow tested to ensure maximum performance
- All MagnaFuel pumps are totally rebuildable to “As New” factory specifications
- Polymer wear plates for smooth, quier operation
|
Fixed-head pump (right) is much
more compact to fit in tighter spaces.
|
ProStar Swivel
|
ProStar SQ Fixed
|
|
| Model No.
|
Horsepower¹
|
Pressure
|
Amps@12.5V
|
Ports²
|
Dimensions
|
Weight
|
| MP-4103
|
2,500+
|
20–120psi
|
17A@45psi
|
#10AN in and out
|
8"L x 3"Dia.
|
5.5lbs.
|
|
¹ Power ratings are for naturally aspirated engines running gasoline. ²Fittings not included. Some products legal for racing only; never to be used on public roads or emission-controlled vehicles.
|
|
|
|
|
