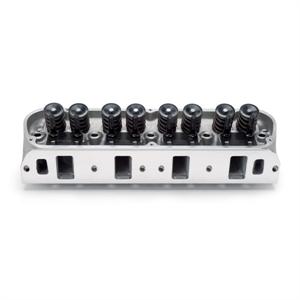

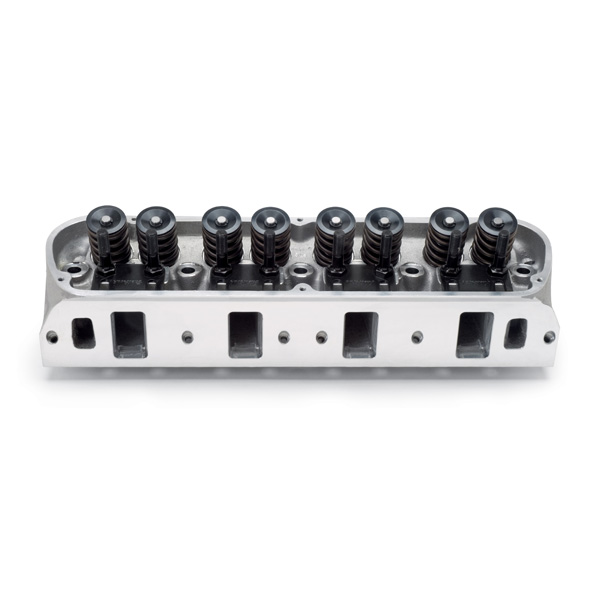

Edelbrock 77199 - Small Block Ford Victor Jr. 20° Cylinder Head 60cc Combustion - Assembled

<< Previous in Small Block Ford Next in Small Block Ford >>

Price: $1,119.99
Part No.: 77199

Victor Jr. 20° Ford
  • 500+ horsepower potential out-of-the-box using stock valve train geometry

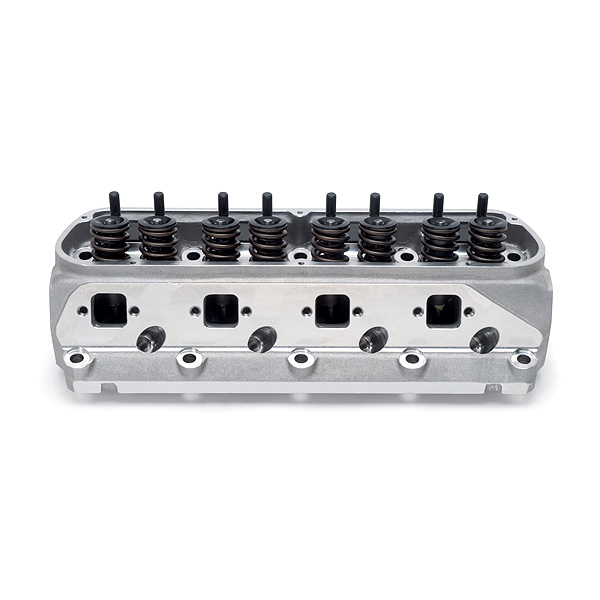

  • High-flowing 210cc intake ports and .130" raised 75cc exhaust ports
  • Available with 60cc or 70cc combustion chambers
  • 70cc combustion chambers are ideal for turbocharged and supercharged applications
  • CNC gasket-matched port entries/exits with blended valve bowls
  • Spark plug holes and valves are in the stock location
  • Valve cover rail raised .150"
  • A relief in the head allows most roller lifters to be changed without removing heads

 Combustion Chamber Volume    60cc
 Intake Runner Volume  210cc
 Exhaust Runner Volume   75cc
 Intake Valve Diameter  2.05"
 Exhaust Valve Diameter  1.60"
 Valve Stem Diameter  11/32"
 Valve Guides  Manganese Bronze
 Deck Thickness  5/8"
 Valve Spring Diameter  1.55"
 Valve Spring Maximum Lift  .650" (Flat Tappet) / .670" (Roller)
 Rocker Stud  7/16"
 Guide Plate  Hardened Steel
 Pushrod Diameter   5/16"
 Valve Angle   20°
 Exhaust Port Location  Raised .130"
 Spart Plug Fitment  14mm x 3/4" Reach, Gasket Seat
