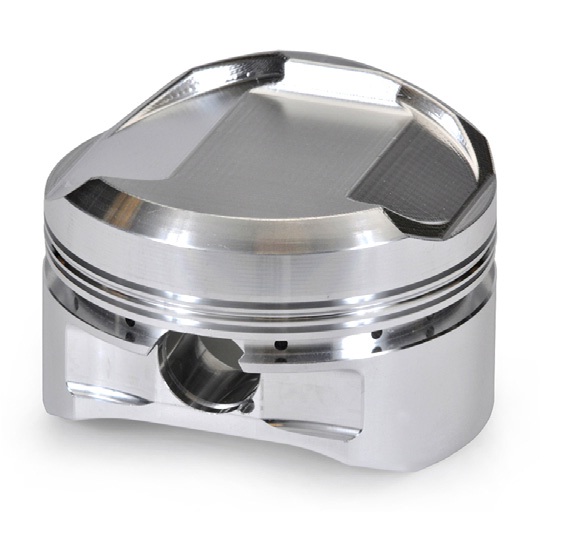

Diamond 43002 Big Block FE Series Ford 427 S.O.H.C. Dome Pistons 33.0cc , 4.250" Bore, 4.250" Stroke, 6.700" Rod, 1.330" CD, .990" x 2.930 Pin

Quantity: * Whole number only Email this page to a friend

Price: $1,456.88 Manufacturer: Diamond Racing Products Part No.: 43002 Compression Ratios 120cc Full Hemi                           10.8:1     * Includes Oil Rail Supports Part Number 43002   Bore 4.250" Stroke 4.250" Rod Length 6.700" Comp. Height 1.330" Wrist Pin .990" x 2.930" Top Ring Down .275" Piston Material 2618 Alloy Piston Style Dome Volume -33.0cc Ring Stack 1/16" x 1/16" x 3/16"   Available Options Moly Skirt Coating Ceramic Dome Coating Hard Anodized Coating  Double Diamond Coating (Hard Anodized and Moly Skirt) 4130 Chrome Moly Wrist Pins 0.155" Wall  4130 Chrome Moly Wrist Pins 0.155" Wall 9310 Endurance Alloy Wrist Pins 0.145" Wall 9310 Endurance Alloy Wrist Pins 0.155" Wall 9310 Endurance Alloy Wrist Pins 0.165" Wall 9310 Endurance Alloy Wrist Pins 0.185" Wall H-13 Tool Steel Wrist Pins 0.145" Wall H-13 Tool Steel Wrist Pins 0.155" Wall H-13 Tool Steel Wrist Pins 0.165" Wall H-13 Tool Steel Wrist Pins 0.175" Wall H-13 Tool Steel Wrist Pins 0.185" Wall H-13 Tool Steel Wrist Pins 0.195" Wall H-13 Tool Steel Wrist Pins 0.200" Wall H-13 Tool Steel Wrist Pins 0.205" Wall H-13 Tool Steel Wrist Pins 0.215" Wall H-13 Tool Steel Wrist Pins 0.220" Wall H-13 Tool Steel Wrist Pins 0.225" Wall H-13 Tool Steel Wrist Pins 0.250" Wall H-13 Tool Steel Wrist Pins 0.165" Wall DLC Coated     Recommended Piston Ring Set- 09024250

Diamond Pro Select 09024250 - Plasma Moly Piston Rings 4.250" Bore 1/16" x 1/16" x 3/16" Price: $153.27 Quantity: * Whole number only
