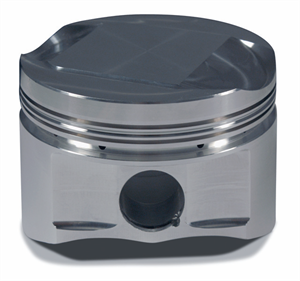

Diamond 40803 Big Block Ford 429 Series Race Flat Top Pistons 3.0cc, 4.420" Bore, 3.590" Stroke, 6.605" Rod, 1.865" CD, 1.040" x 2.930 Pin .040" Over

<< Previous in Race - Big Block Ford 429 Series / 10.300" Deck - Flat Top Next in Race - Big Block Ford 429 Series / 10.300" Deck - Flat Top >>

Price: $1,524.46
Manufacturer: Diamond Racing Products
Part No.: 40803


Compression Ratios
Semi 84cc
Full 100cc

10.1:1

8.9:1


Part Number
40803
Bore
4.420"
Stroke
3.590"
Rod Length
6.605"
Comp. Height
1.865"
Wrist Pin
1.040" x 2.930"
Top Ring Down
.375"
Piston Material
2618 Alloy
Piston Style
Flat Top
Volume 3.0cc
Ring Stack
1/16" x 1/16" x 3/16"

  Available Options
  • Moly Skirt Coating
  • Ceramic Dome Coating
  • Hard Anodized Coating
  • Double Diamond Coating (Hard Anodized and Moly Skirt)
  • 4130 Chrome Moly Wrist Pins 0.155" Wall
Recommended Piston Ring Set- 09024420
