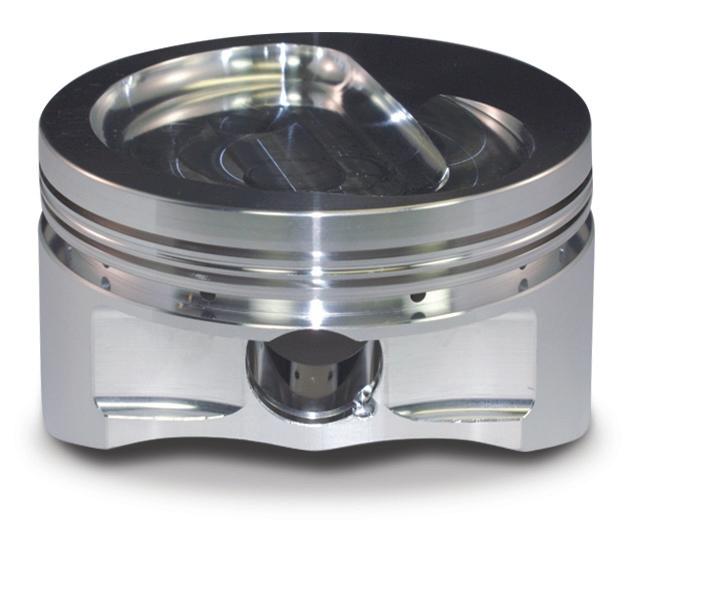

Diamond 40431 Big Block Ford 385 Series Street / Strip Dish Pistons -38.0cc, 4.400" Bore, 4.500" Stroke, 6.800" Rod, 1.245" CD, .990" x 2.930 Pin

<< Previous in Street / Strip - Big Block Ford 385 Series "KAASE" / 10.300" Deck - Dish Next in Street / Strip - Big Block Ford 385 Series "KAASE" / 10.300" Deck - Dish >>

Price: $1,469.53
Manufacturer: Diamond Racing Products
Part No.: 40431


Compression Ratios
68cc
70cc
72cc
10.4:1
10.3:1
10.1:1
* Includes Oil Rail Supports
Part Number
40431
Bore
4.400"
Stroke
4.500"
Rod Length
6.800"
Comp. Height
1.245"
Wrist Pin
.990" x 2.930"
Top Ring Down
.285"
Piston Material
2618 Alloy
Piston Style
Dish
Volume -38.0cc
Ring Stack
1/16" x 1/16" x 3/16"

  Available Options
  • Moly Skirt Coating
  • Ceramic Dome Coating
  • Hard Anodized Coating
  • Double Diamond Coating (Hard Anodized and Moly Skirt)
  • 4130 Chrome Moly Wrist Pins 0.155" Wall
  • 4130 Chrome Moly Wrist Pins 0.155" Wall
  • 9310 Endurance Alloy Wrist Pins 0.145" Wall
  • 9310 Endurance Alloy Wrist Pins 0.155" Wall
  • 9310 Endurance Alloy Wrist Pins 0.165" Wall
  • 9310 Endurance Alloy Wrist Pins 0.185" Wall
  • H-13 Tool Steel Wrist Pins 0.145" Wall
  • H-13 Tool Steel Wrist Pins 0.155" Wall
  • H-13 Tool Steel Wrist Pins 0.165" Wall
  • H-13 Tool Steel Wrist Pins 0.175" Wall
  • H-13 Tool Steel Wrist Pins 0.185" Wall
  • H-13 Tool Steel Wrist Pins 0.195" Wall
  • H-13 Tool Steel Wrist Pins 0.200" Wall
  • H-13 Tool Steel Wrist Pins 0.205" Wall
  • H-13 Tool Steel Wrist Pins 0.215" Wall
  • H-13 Tool Steel Wrist Pins 0.220" Wall
  • H-13 Tool Steel Wrist Pins 0.225" Wall
  • H-13 Tool Steel Wrist Pins 0.250" Wall
  • H-13 Tool Steel Wrist Pins 0.165" Wall DLC Coated




Recommended Piston Ring Set- 09024400
