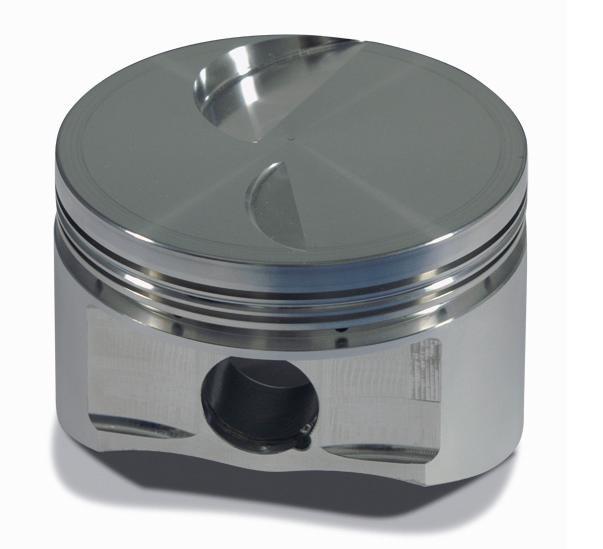

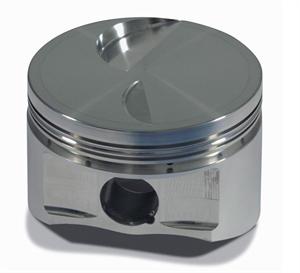

Diamond 40012 Big Block Ford 385 Series Street / Strip Flat Top Pistons -5.0cc , 4.390" Bore, 4.300" Stroke, 6.800" Rod, 1.345" CD, .990" x 2.930 Pin

<< Previous in Street / Strip - Big Block Ford 385 Series 429 - 460 Block / 10.300" Deck - Flat Top Next in Street / Strip - Big Block Ford 385 Series 429 - 460 Block / 10.300" Deck - Flat Top >>

Price: $1,325.19
Manufacturer: Diamond Racing Products
Part No.: 40012


Compression Ratios
72cc
76cc
92cc
12.8:1
12.3:1
10.7:1

Part Number
40012
Bore
4.390"
Stroke
4.300"
Rod Length
6.800"
Comp. Height
1.345"
Wrist Pin
.990" x 2.930"
Top Ring Down
.290"
Piston Material
2618 Alloy
Piston Style
Flat Top
Volume -5.0cc
Ring Stack
1/16" x 1/16" x 3/16"

  Available Options
  • Moly Skirt Coating
  • Ceramic Dome Coating
  • Hard Anodized Coating
  • Double Diamond Coating (Hard Anodized and Moly Skirt)
  • 4130 Chrome Moly Wrist Pins 0.155" Wall
  • 4130 Chrome Moly Wrist Pins 0.155" Wall
  • 9310 Endurance Alloy Wrist Pins 0.145" Wall
  • 9310 Endurance Alloy Wrist Pins 0.155" Wall
  • 9310 Endurance Alloy Wrist Pins 0.165" Wall
  • 9310 Endurance Alloy Wrist Pins 0.185" Wall
  • H-13 Tool Steel Wrist Pins 0.145" Wall
  • H-13 Tool Steel Wrist Pins 0.155" Wall
  • H-13 Tool Steel Wrist Pins 0.165" Wall
  • H-13 Tool Steel Wrist Pins 0.175" Wall
  • H-13 Tool Steel Wrist Pins 0.185" Wall
  • H-13 Tool Steel Wrist Pins 0.195" Wall
  • H-13 Tool Steel Wrist Pins 0.200" Wall
  • H-13 Tool Steel Wrist Pins 0.205" Wall
  • H-13 Tool Steel Wrist Pins 0.215" Wall
  • H-13 Tool Steel Wrist Pins 0.220" Wall
  • H-13 Tool Steel Wrist Pins 0.225" Wall
  • H-13 Tool Steel Wrist Pins 0.250" Wall
  • H-13 Tool Steel Wrist Pins 0.165" Wall DLC Coated




Recommended Piston Ring Set- 09024390
