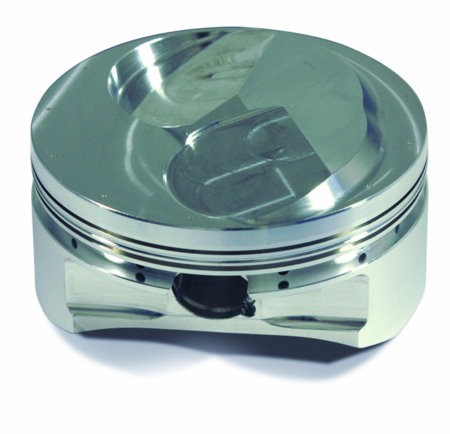

Diamond 12767 Big Block Chevrolet - Big Chief/Big Duke - Dome Pistons, 6.0cc, 4.625" Bore, 4.750" Stroke, 6.700" Rod, 1.120" CD, .990" x 2.930" Pin

Part Number	12767
Bore	4.625"
Stroke	4.750"
Rod Length	6.700"
Comp. Height	1.120"
Wrist Pin	.990" x 2.930"
Top Ring Down	.340"
Piston Material	2618 Alloy
Piston Style	Dome
Volume	6.0cc
Ring Stack	.043" x 1/16" x  3/16"

  Available Options

• Moly Skirt Coating
• Ceramic Dome Coating
• Hard Anodized Coating
• Double Diamond Coating (Hard Anodized and Moly Skirt)
• H-13 Tool Steel Wrist Pins 0.165" Wall DLC Coated
• H-13 Tool Steel Wrist Pins 0.145" Wall
• H-13 Tool Steel Wrist Pins 0.155" Wall
• H-13 Tool Steel Wrist Pins 0.165" Wall
• H-13 Tool Steel Wrist Pins 0.175" Wall
• H-13 Tool Steel Wrist Pins 0.185" Wall
• H-13 Tool Steel Wrist Pins 0.195" Wall
• H-13 Tool Steel Wrist Pins 0.200" Wall
• H-13 Tool Steel Wrist Pins 0.205" Wall
• H-13 Tool Steel Wrist Pins 0.215" Wall
• H-13 Tool Steel Wrist Pins 0.220" Wall
• H-13 Tool Steel Wrist Pins 0.225" Wall
• H-13 Tool Steel Wrist Pins 0.250" Wall

Recommended Piston Ring Set- 09234625
