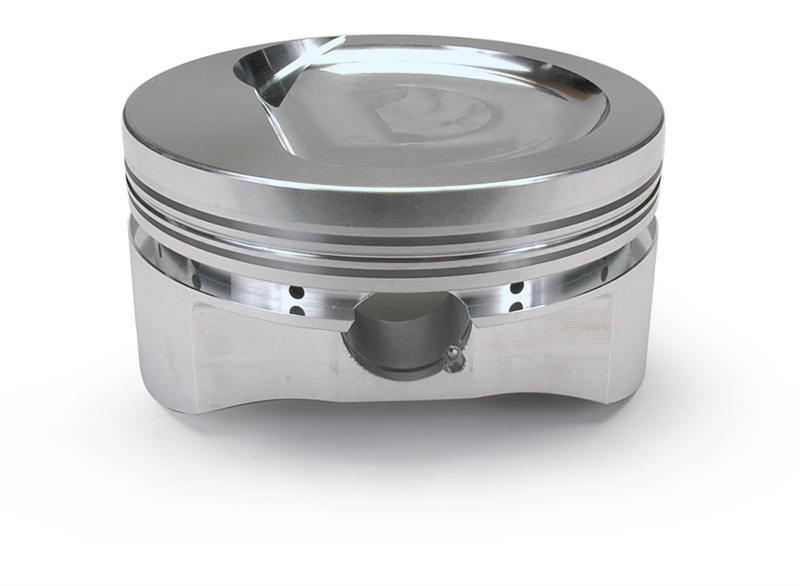

Diamond 12444 Big Block Chevrolet - Forced Induction - Dish Pistons, -14.5cc, 4.350" Bore, 4.500" Stroke, 6.535" Rod, 1.395" CD, .990" x 2.930" Pin

Part Number	12444
Bore	4.350"
Stroke	4.500"
Rod Length	6.535"
Comp. Height	1.395"
Wrist Pin	.990" x 2.930"
Top Ring Down	.340"
Piston Material	2618 Alloy
Piston Style	Dish
Volume	-14.5cc
Ring Stack	1/16" x 1/16" x  3/16"

  Available Options

• Moly Skirt Coating
• Ceramic Dome Coating
• Hard Anodized Coating
• Lateral Gas Ports

• Double Diamond Coating (Hard Anodized and Moly Skirt)
• 4130 Chrome Moly Wrist Pins 0.185" Wall DLC Coated
• 4130 Chrome Moly Wrist Pins 0.155" Wall

• 9310 Endurance Alloy Wrist Pins 0.145" Wall
• 9310 Endurance Alloy Wrist Pins 0.155" Wall
• 9310 Endurance Alloy Wrist Pins 0.165" Wall
• 9310 Endurance Alloy Wrist Pins 0.185" Wall
• H-13 Tool Steel Wrist Pins 0.165" Wall DLC Coated
• H-13 Tool Steel Wrist Pins 0.145" Wall
• H-13 Tool Steel Wrist Pins 0.155" Wall
• H-13 Tool Steel Wrist Pins 0.165" Wall
• H-13 Tool Steel Wrist Pins 0.175" Wall
• H-13 Tool Steel Wrist Pins 0.185" Wall
• H-13 Tool Steel Wrist Pins 0.195" Wall
• H-13 Tool Steel Wrist Pins 0.200" Wall
• H-13 Tool Steel Wrist Pins 0.205" Wall
• H-13 Tool Steel Wrist Pins 0.215" Wall
• H-13 Tool Steel Wrist Pins 0.220" Wall
• H-13 Tool Steel Wrist Pins 0.225" Wall
• H-13 Tool Steel Wrist Pins 0.250" Wall

Recommended Piston Ring Set- 09024350
