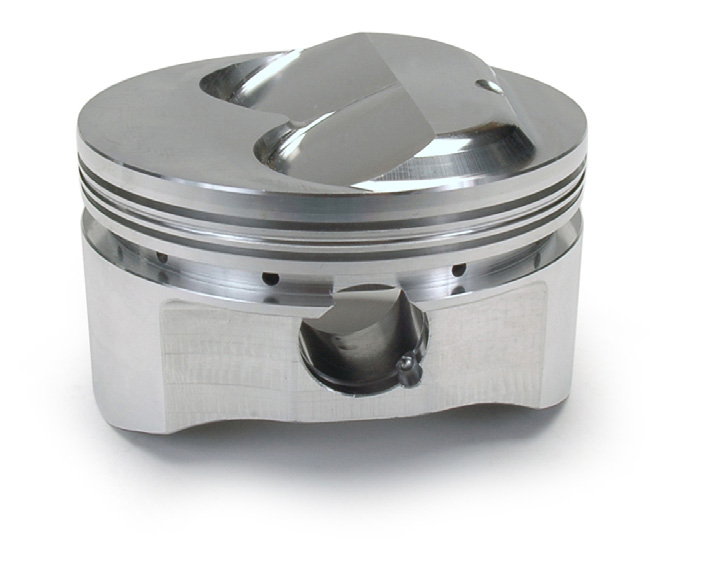

Diamond 11653 Small Block 350 Chevrolet - 23° Dome Pistons, 13.7cc, 4.040" Bore, 3.480" Stroke, 5.700" Rod, 1.550" CD, .927" x 2.950" Pin

<< Previous in Street / Strip - 23° Dome - 350 Block 9.000" Deck Next in Street / Strip - 23° Dome - 350 Block 9.000" Deck >>

Price: $1,376.71
Manufacturer: Diamond Racing Products
Part No.: 11653


Compression Ratios
    64cc       70cc       76cc
12.7:1 11.6:1 10.8:1

Part Number
11653
Bore
4.040"
Stroke
3.480"
Rod Length
5.700"
Comp. Height
1.550"
Wrist Pin
.927" x 2.950"
Top Ring Down
.180-.210
Piston Material
4032 Alloy
Piston Style
Dome
Volume 13.7cc
Ring Stack
1/16" x 1/16 x 3/16

  Available Options
  • Moly Skirt Coating
  • Ceramic Dome Coating
  • Hard Anodized Coating
  • Lateral Gas Ports
  • Double Diamond Coating (Hard Anodized and Moly Skirt)
  • 4130 Chrome Moly Wrist Pins 0.185" Wall DLC Coated
  • 4130 Chrome Moly Wrist Pins 0.155" Wall
  • H-13 Tool Steel Wrist Pins 0.185" Wall DLC Coated
  • H-13 Tool Steel Wrist Pins 0.155" Wall
  • H-13 Tool Steel Wrist Pins 0.165" Wall
  • H-13 Tool Steel Wrist Pins 0.175" Wall
  • H-13 Tool Steel Wrist Pins 0.185" Wall
  • H-13 Tool Steel Wrist Pins 0.205" Wall
  • H-13 Tool Steel Wrist Pins 0.215" Wall
  • H-13 Tool Steel Wrist Pins 0.225" Wall

Recommended Piston Ring Set- 09024040
