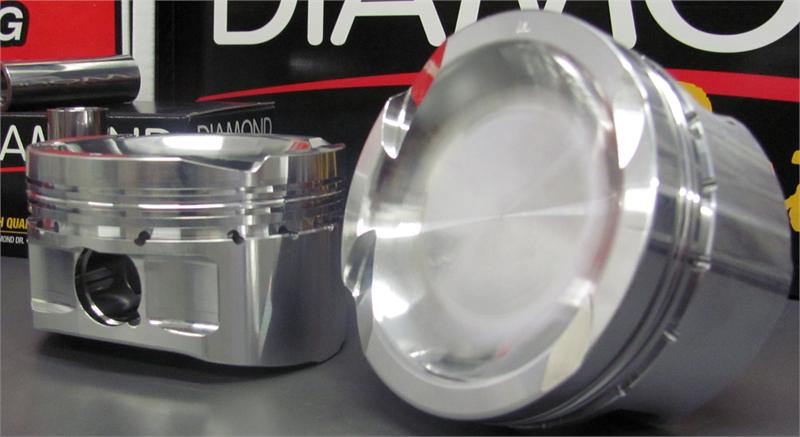

Custom Diamond 5.4L Specific Pistons, -5.2cc Dish - Standard Bore

<< Previous in Custom 5.4L Specific Pistons Next in Custom 5.4L Specific Pistons >>

* denotes required field

Select Valve Reliefs*
Select Wrist Pins *
Price: $1,049.99
Manufacturer: Diamond Racing Products
Part No.: C3001054


 -5.2cc Dish , 3.552" Bore
  2V PI - 42.5cc     3V - 51cc      4V - 52cc
 13.61:1 11.88:1 11.71:1
*Compression Ratios are Calculated for a 4.165" Stroke, .008" Deck Clearance, and 3.650" Bore / .027" Thick Head Gaskets.

  • 2618 Alloy-Designed for Forced Induction and Nitrous Applications
  • Offset Wrist Pins for Quiet Operation
  • 3.552" Bore / 1.330" Compression Height
  • Minimum .220 Underhead Thickness
  • .275 Down Top Ring
  • Premium 4130 Wrist Pins Included
  • 1.5mm x 1.5mm x 3mm Ring Stack
  • Available with 2V, 3V or 4V Valve Pockets

  • Moly Skirt Coating
  • Ceramic Dome Coating
  • Hard Anodized Coating
  • Double Diamond Coating (Hard Anodized and Moly Skirt)
  • 4130 Coated Wrist Pins 0.155" Wall
  • H-13 Tool Steel Wrist Pins 0.155" Wall
  • H-13 Tool Steel Wrist Pins 0.200" Wall
  • H-13 Tool Steel Coated Wrist Pins 0.155" Wall
  • H-13 Tool Steel Coated Wrist Pins 0.200" Wall
  • 9310 Endurance Alloy Wrist Pins 0.155" Wall
Recommended Piston Ring Set- 09063552

Related Products

Total Seal CS8264-5 - Advanced Profiling Stainless Steel Piston Ring Set 1.5mm x 1.5mm x 3mm, 3.552" Bore
Price: $341.71
Total Seal CS8264-5 - Advanced Profiling Stainless Steel Piston Ring Set 1.5mm x 1.5mm x 3mm, 3.552" Bore
3.552" Bore, 1.5mm x 1.5mm x 3mm, Low Tension Oil 11lb +/-
Diamond Pro Select 09063552 - Plasma Moly Piston Rings 3.552" Bore 1.5mm x 1.5mm x 3mm
Price: $219.99
Diamond Pro Select 09063552 - Plasma Moly Piston Rings 3.552" Bore 1.5mm x 1.5mm x 3mm
Designed to Fit Standard Bore Ford 4.6 / 5.4 Pistons. 3.552" File to Fit 1.5mm x 1.5mm x 3mm - Standard Tension
