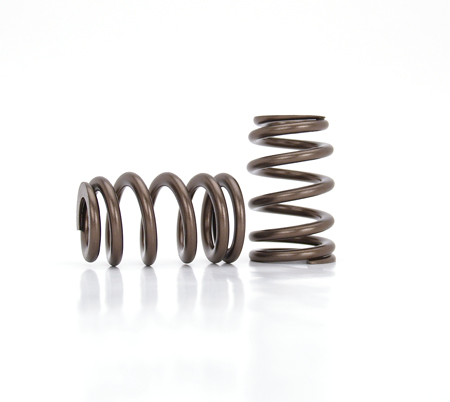

Comp Cams Beehive Valve Spring Set 4.6 / 5.4 Modular 4V

<< Previous in Comp Cams

Next in Comp Cams >>

Quantity:

Email this page to a friend

Price: $627.95

Manufacturer: Comp Cams

Part No.: 26123-32

COMP Cams® Beehive™ Valve Springs are revolutionizing performance street applications. With the valve control and reduced weight that Beehive™ Springs deliver, street cars are now able to turn more rpm and have higher lift camshafts while maintaining the stability of OE applications. The oval shape of the wire allows better heat dissipation for longer spring life.

• Designed for Ford 4.6L Modular 4 Valve engine
• .500" maximum lift, 1.105" O.D.
• No machining required

Part #		O.D.	I.D.	Seat Load	Open Load	Coil Bind	Rate (Lbs./In.)	Titanium Retainer	Steel Retainer	Cup Seat	Shims
26123	Top Bottom	.943 1.105	.580 .742	90 @ 1.470	252 @ .970	.900	324	798	799	N/A	N/A
